Introducing MeterHome

Check out MeterHome

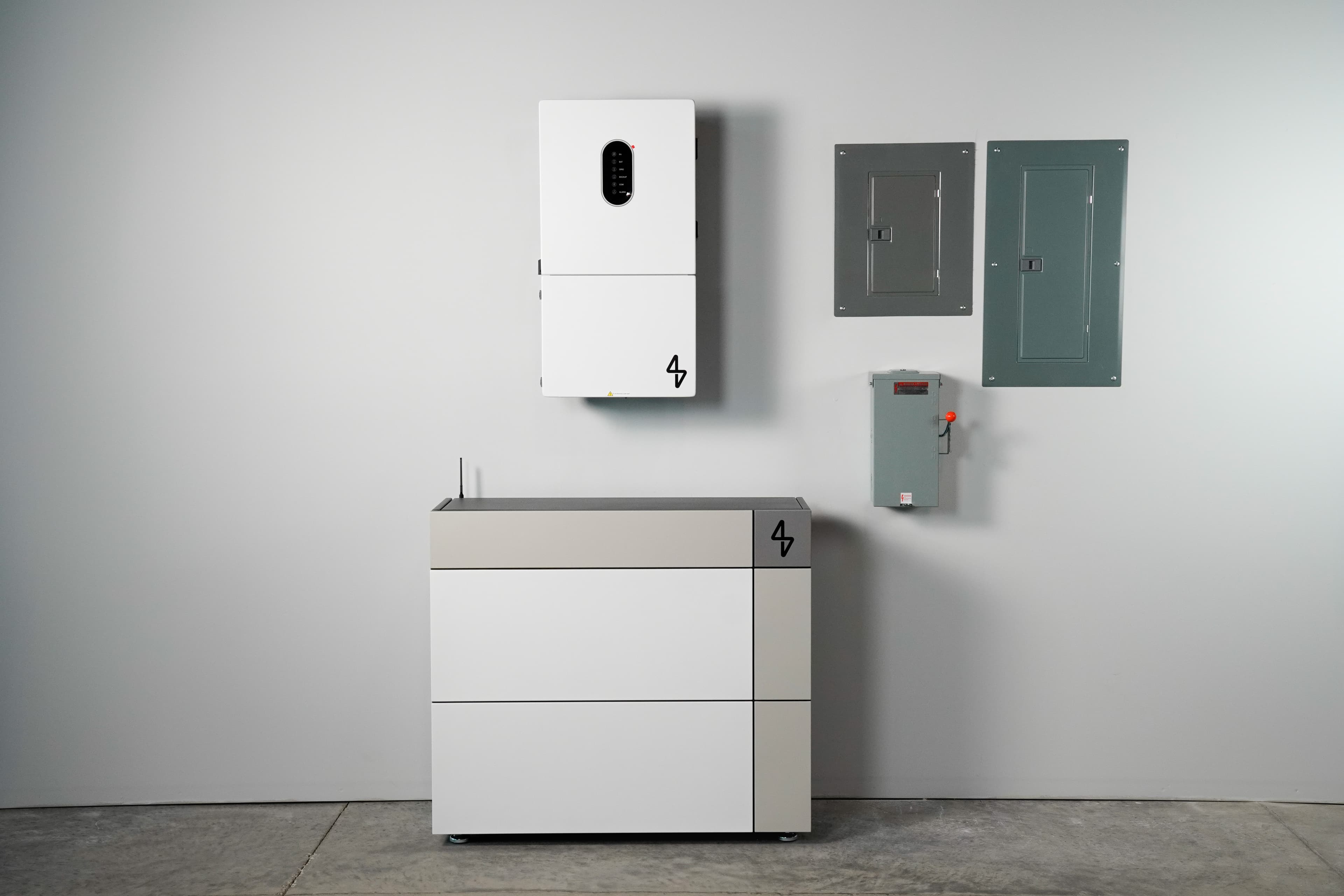

Designed To Fit Your Life

Provides up to 10 kW continuous output

Back up panel - critical loads

Main panel

Store up to 14.3 kWh of energy per battery

Manual transfer switch

Component Key

MeterHome Product

Not Provided/Optional

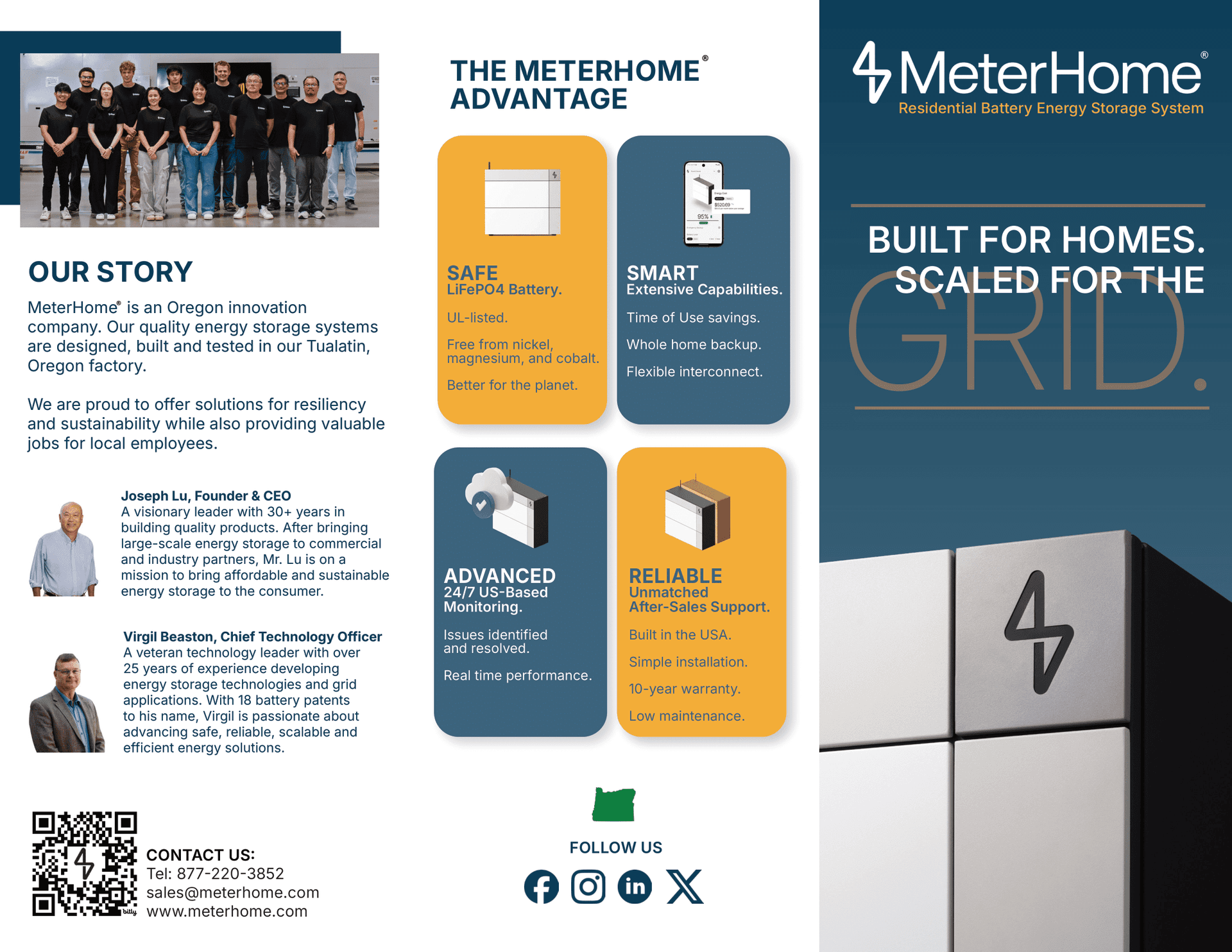

The MeterHome Advantage

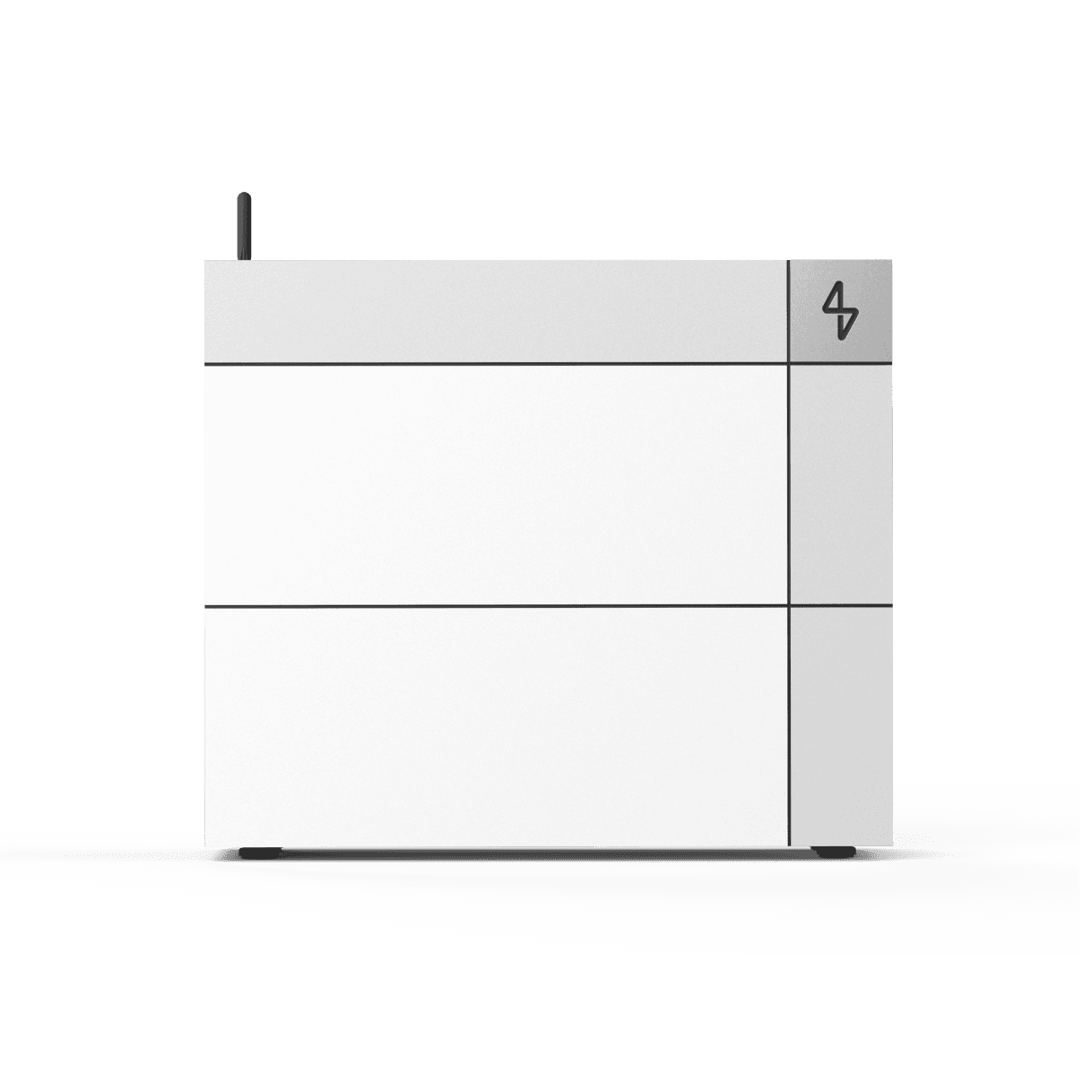

Safe

LiFePO4 Battery

•UL-listed.
•Free from nickel, magnesium, and cobalt.
•Better for the planet.

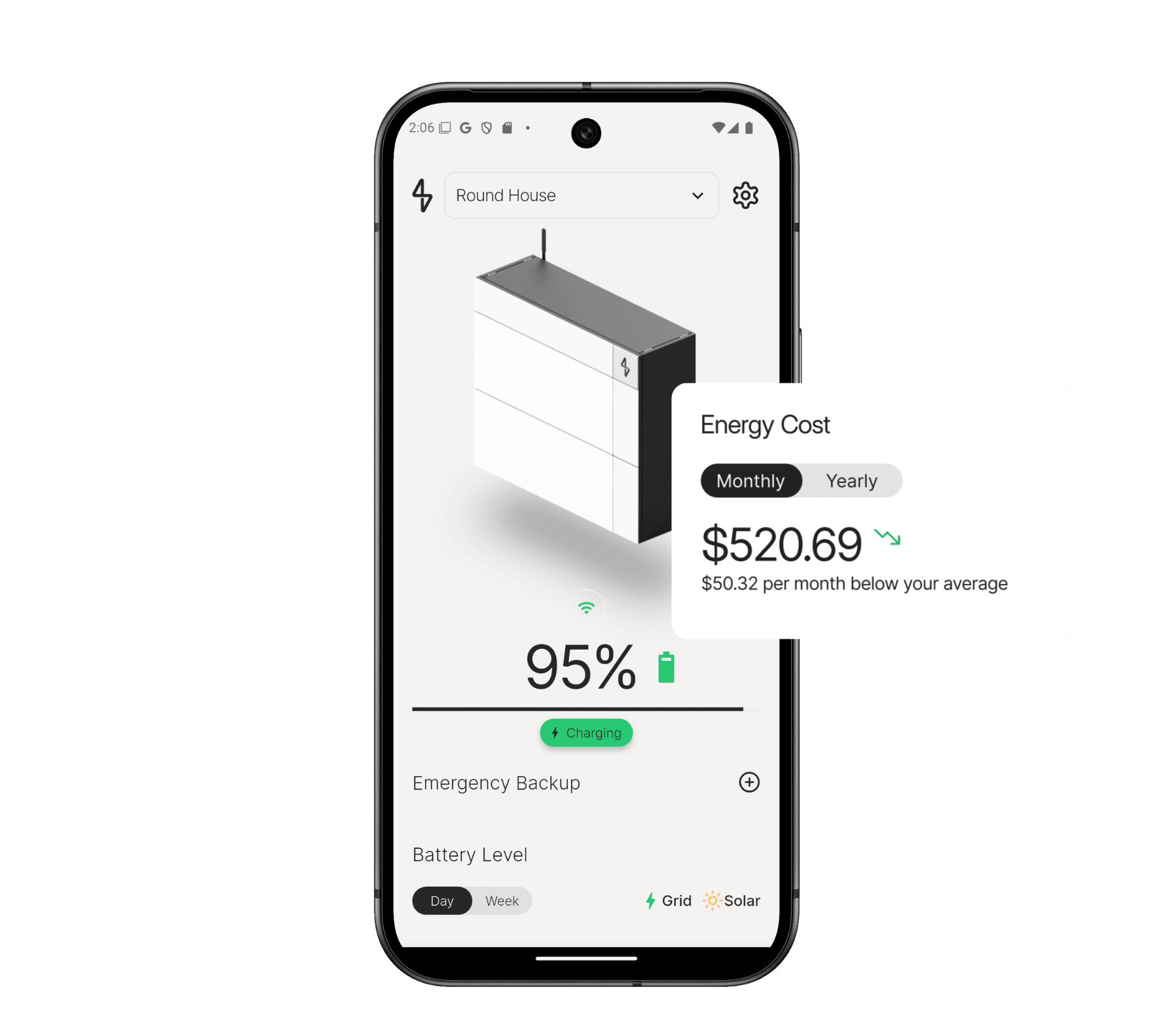

Smart

Extensive Capabilities

•Time of Use savings.
•Whole home backup.
•Flexible interconnect.

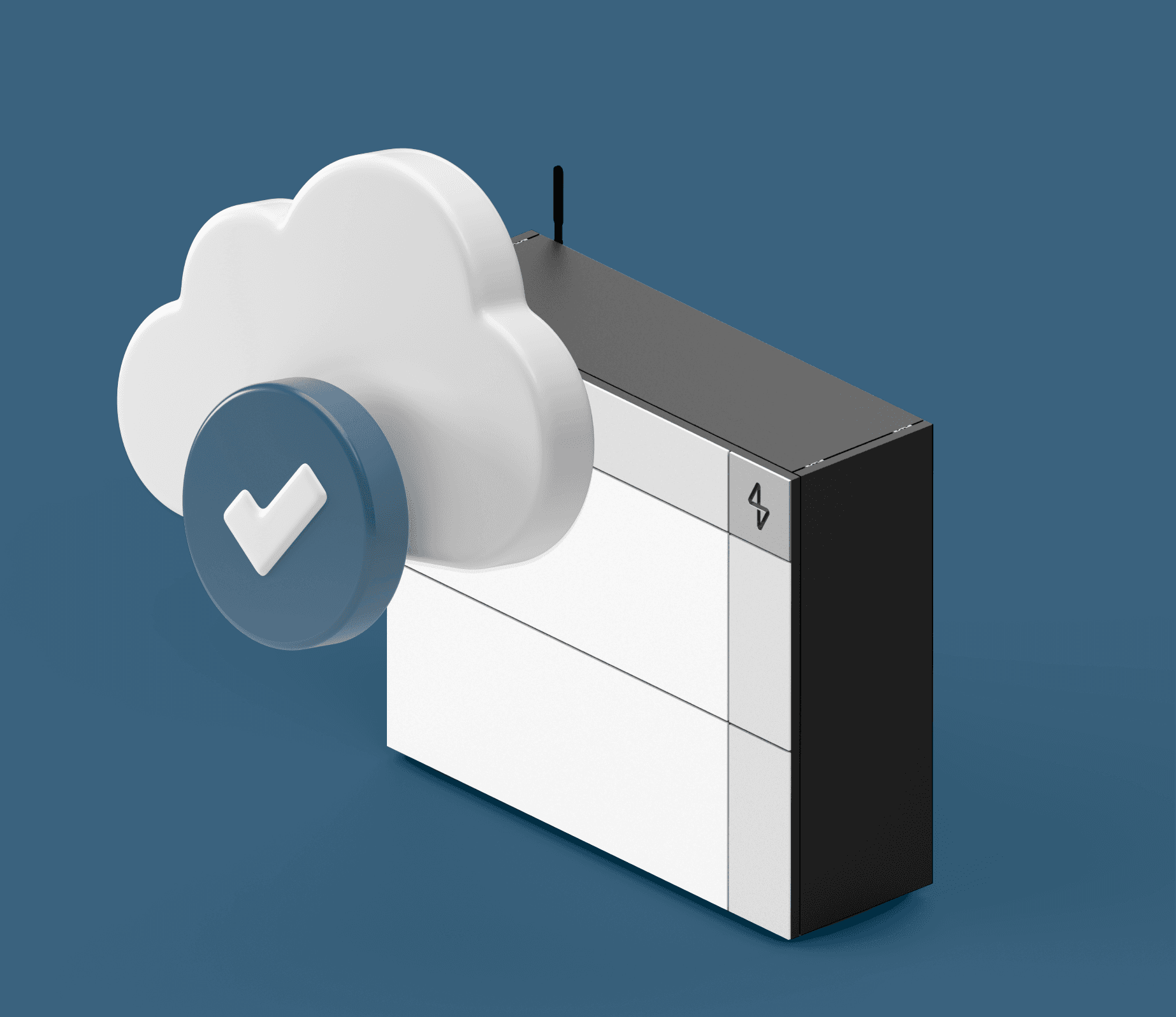

Advanced

24/7 US-Based Monitoring

•Issues identified and resolved.
•Real time performance.

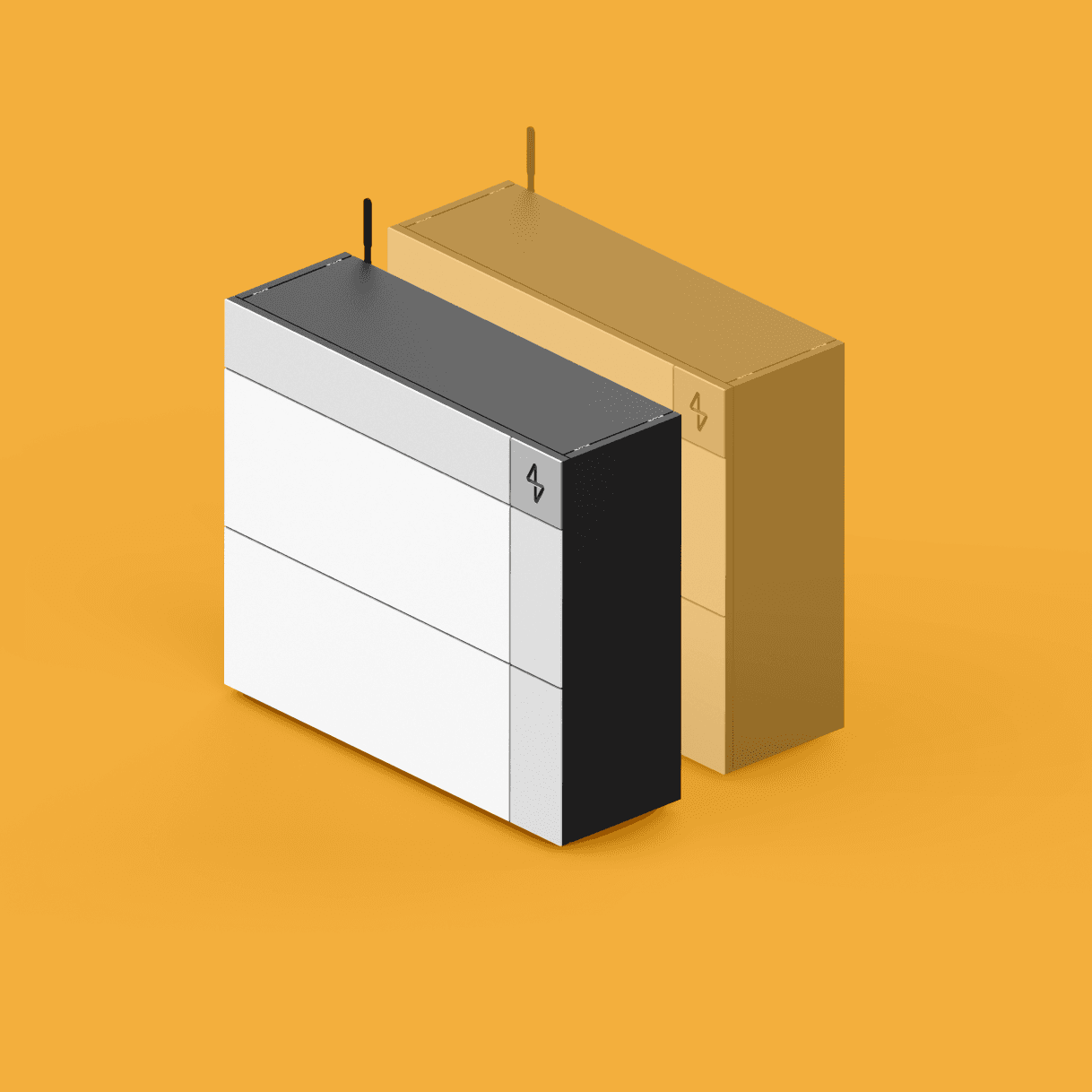

Reliable

Unmatched After-Sales Support

•Built in the USA.
•Simple installation.
•10-year warranty.
•Low maintenance.

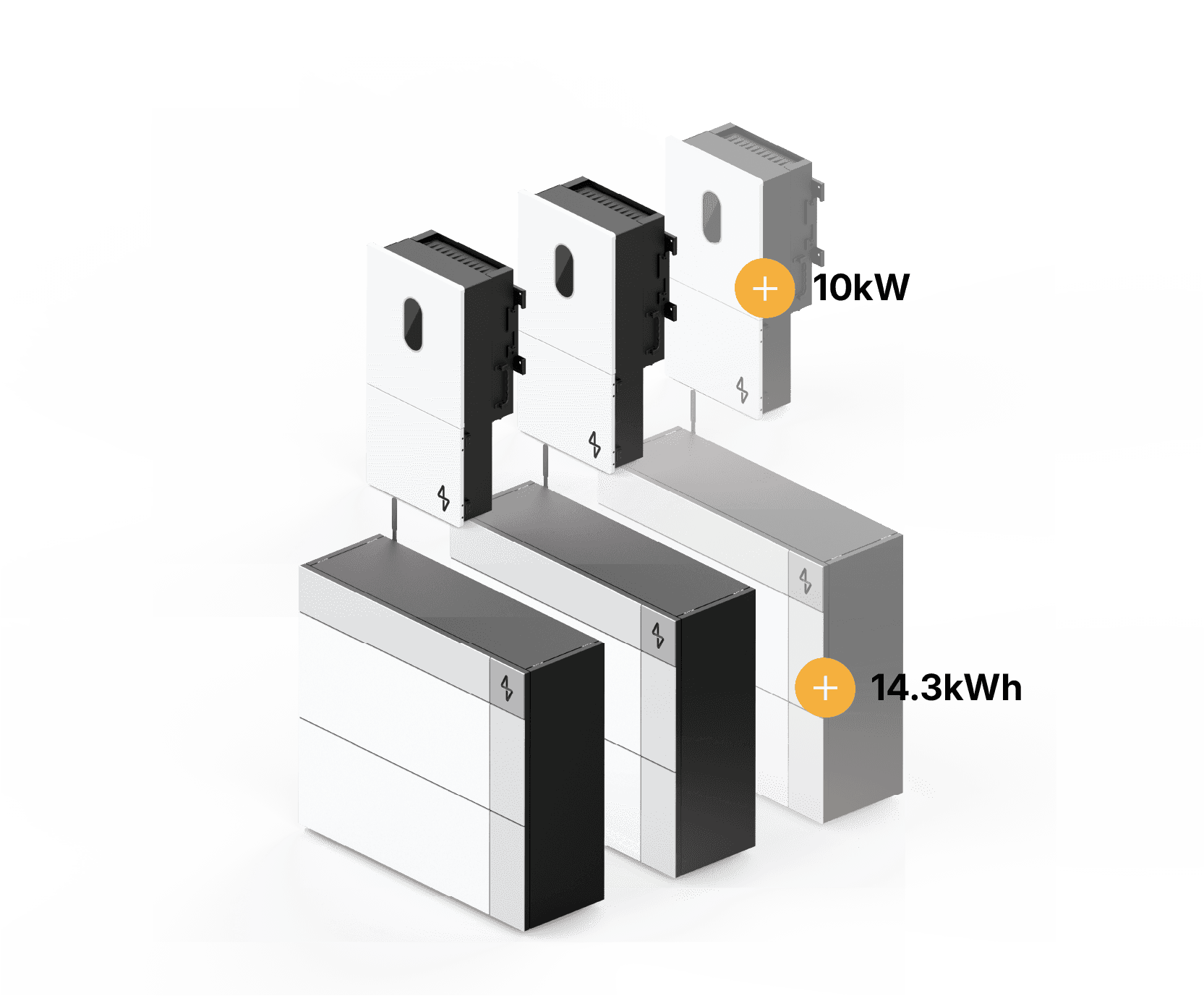

Built to fit your life.

Our advanced battery backup systems are stackable. Up to 8 battery enclosures and 9 inverters, delivering 114.4kWh peak capacity and 90kW continuous power—ensuring your home stays on, no matter what.

Ready to Start Saving?

Take the next step toward energy independence. Our team will help you design the perfect system for your home and guide you through every step of the process.

Download Spec Sheet

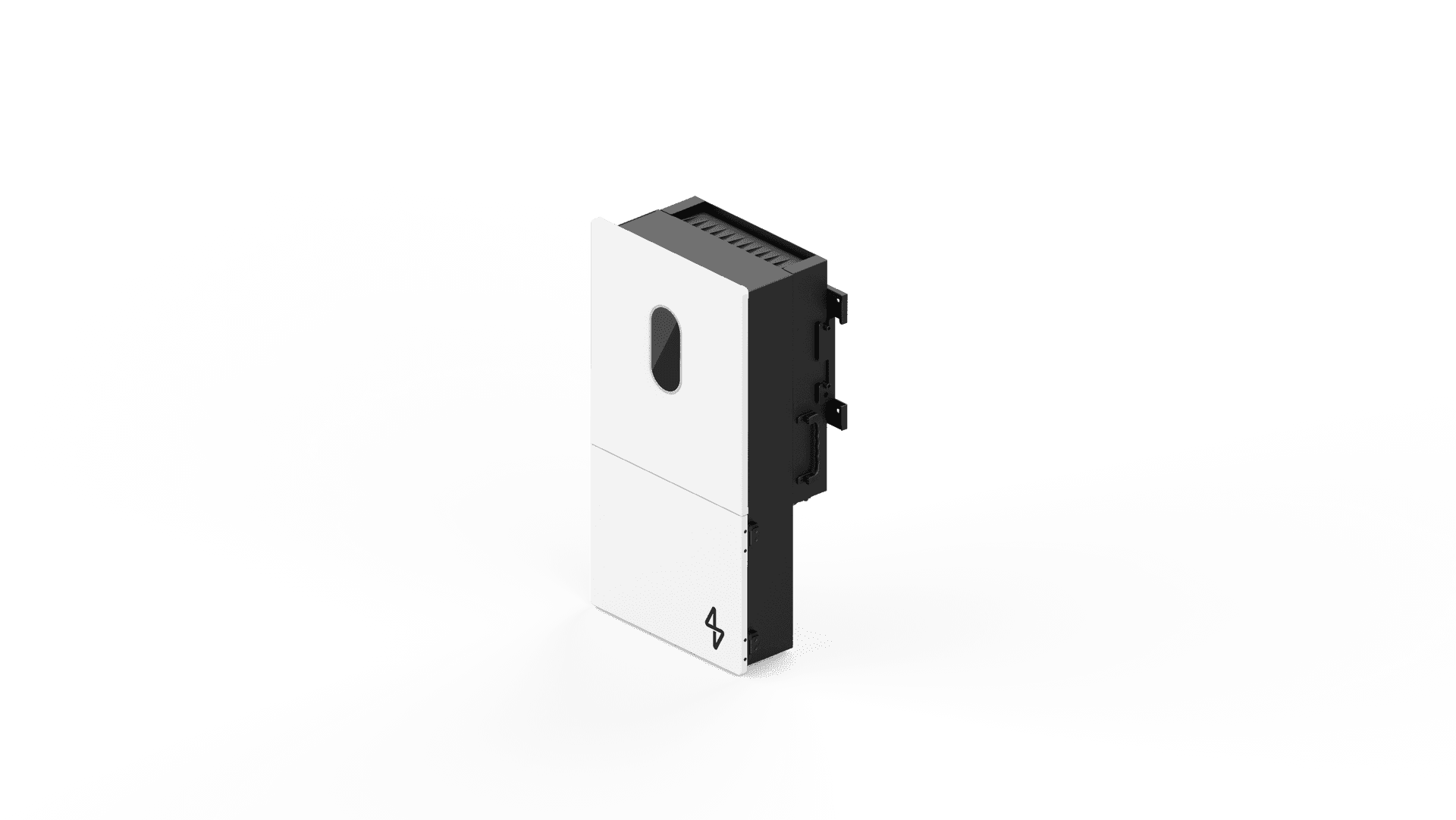

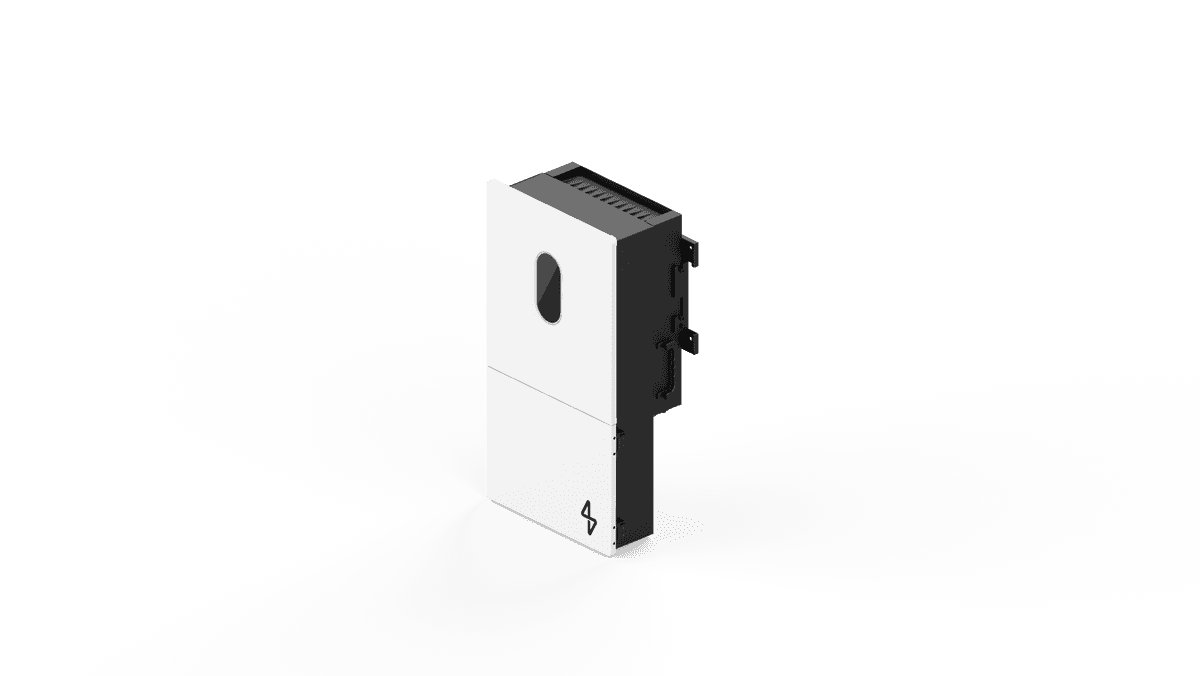

Inverter Tech Specifications

Mechanical Specs

Weight Approximation	88 lbs. (40 kg)
Dimension (W x D x H)	16.5" x 9.4" x 31.5" (420mm x 240mm x 800mm)
Mounting	Wall bracket
Cooling Method	Fan Cooling
Ingress Protection Degree	NEMA 3R

Environment Specs

Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Maximum Operation Altitude	max 6,562ft (2000m)
Relative Humidity	0~100%
Ingress Protection Degree	NEMA 3R

Performance Specs

Nominal AC Output (W)	10,000
Maximum PV Input Power (W)	15,000
Maximum Input Current per MPPT (A)	30/22/22
Nominal Grid Voltage (Vac)	120/240V (Split phase) / 208V (2/3 phase)
Nominal Grid Frequency (Hz)	50/60
Rated PV Input Voltage (Vdc)	600
Start Up DC Voltage (Vdc)	90
MPPT Voltage Range (Vdc)	70-540
Maximum PV Circuit Current (A)	44+44
Number of MPPT	3
String per MPPT	2/2/2
PV Connection Way	Terminals
Peak Power (off grid)	2 times of rated power, 10s
Power Factor	0.8 leading to 0.8 lagging
DC Injection Current (mA)	THD <3% (Linear load <1.5%)
Maximum Efficiency (PV to AC)	98.0%
Maximum Efficiency (BAT to AC)	94.5%
CEC. Efficiency	96.5%
Communication Interface	CAN(for BMS), DRM/RS485 (for meter), RS485
Safety Certification	UL1741, CSA C22.2, UL1699B
Grid Regulation	UL1741SB, IEEE1547 :2018, HECO SRD 2.0
EMC	FCC Part 15 Class B
Protection Category	Class I
Connects up to	9 Inverters

*Specifications subject to change. Contact Meter for the latest details.

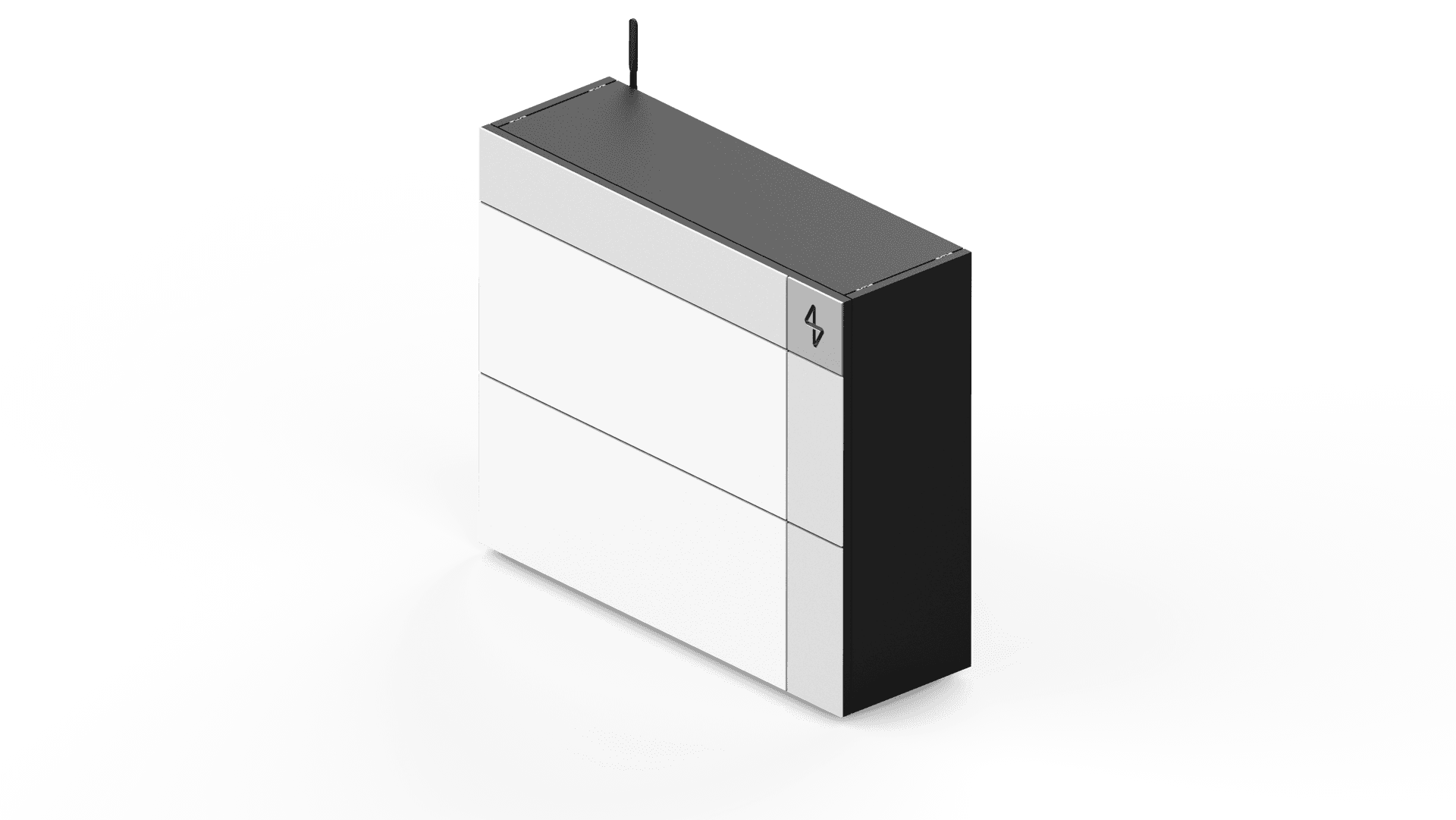

Battery Enclosure Tech Specifications

Mechanical Specs

Dimension (W x D x H)	39.6" x 16" x 34.5" (1006mm x 406mm x 876mm)
Weight Approximation	463 lbs. (210 kg)
Installation Style	Indoor, Floor Mounted
Cooling	air-cooled

Environment Specs

Humidity	5%-95%
Maximum Operation Altitude	max 6,562ft (2000m)
Enclosure Protection Rating	IP 44

Performance Specs

Energy Configuration (kWh)	14.3
Maximum Charging / Discharging Current (A)	150
Battery Operating Voltage (V)	40-58.4
Battery Chemistry	LiFePO4
Charging Temperature Range	0°C to 35°C (32°F to 95°F)
Discharging Temperature Range	-30°C to 35°C (-22°F to 95°F)
Cycle Life	25°C (77°F) 8000 cycles, 70% SOH / 45°C (113°F) 3000 cycles, 70% SOH
Safety Certification	UL60730, UL1973, UL9540, UL9540A, UN38.3
Warranty	10 years (Standard)
Connects up to	8 Battery Enclosures

*Specifications subject to change. Contact Meter for the latest details.

Frequently Asked Questions

How is MeterHome different from other batteries out there?

MeterHome batteries are proudly designed, built and tested in the United States. Every battery is fully self-monitored and remotely optimized for peak efficiency by our professional, US-based control center. In the event of errors or performance issues, MeterHome engineers will either perform automatic remote maintenance or dispatch a technician for timely on-site service.

When will I receive my tax credit and state rebates?

The federal tax credit is applied when you file your tax return. State rebates may take up to six months after project completion. Consult your tax professional for more details.

Are shipping, permitting and installation included?

Shipping, permitting and installation fees are subject to the policies set forth by each distributor and the laws governing each municipality.

What type of battery is inside?

We use Lithium Iron Phosphate (LiFePO4) batteries. MeterHome is UL-listed for its adherence to strict safety regulations. In addition to their superior safety advantages, LiFePO4 batteries are free from nickel, magnesium and cobalt, toxic substances with significant humanitarian and ethical concerns.

Can my battery be used every day?

Yes, our batteries are designed for everyday use.

Is MeterHome safe?

Yes. We use Lithium Iron Phosphate (LiFePO4) batteries. MeterHome is UL-listed for its adherence to strict safety regulations. LiFePO4 exhibits greater thermal stability and a significantly higher thermal runaway temperature. These are safer, tougher, more durable batteries.

Will it work with existing batteries from other companies?

MeterHome batteries are designed to operate exclusively with MeterHome systems. However, your system will be compatible with most existing solar setups and generators.

How do I prolong the life of my battery?

We do not restrict the depth of discharge if used daily. If not used daily, we suggest the resting stage be set between 40% and 60%. In addition, MeterHome batteries have built-in safety features to prevent damage.

What is the warranty?

Each MeterHome battery comes with a 10-year warranty.

Can I participate in a program with my utility company?

Yes, MeterHome batteries support participation in utility financial benefit programs. Please contact your local utility company to inquire about their specific programs and offerings.
